Femoral Condyle prosthetic knee joint component

Short Description:

Product NO. Size ML AP
B520101 2L 55 47
B520102 4L 58 50
B520103 6L 62 55
B520104 8L 66 59
B520105 10L 70 62
B520106 12L 73 66
B520107 14L 76 70
B520108 2R 55 47
B520109 4R 58 50
B520110 6R 62 55
B520111 8R 66 59
B520112 10R 70 62
B520113 12R 73 66
B520114 14R 76 70

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,

Payment: T/T, PayPal

Sichuan Chenanhui Tehnology Co., Ltd.is a supplier of orthopedic implants and orthopedic instruments and is engaged in selling them, owns its manufacturing factories in China, which sells and manufactures internal fixation implants Any inquiries we are happy to reply. Please choose Sichuan Chenanhui, and our services will definitely give you satisfaction.

Product Detail

Quick Details

Product Tags

Product OverView

We provide you with high flexion knee systems, restrictive knee systems and custom tumor knee prostheses. A total surface knee replacement prosthesis generally consists of a femoral ankle, a tibial tray, and a tibial pad. Its components are available in a variety of specifications to meet clinical needs.
High flexion knee joint system: open box rearward shift design, preserves bone volume, maintains the continuity of the anterior cortical bone, small radius J-shaped design of the posterior malleolus of the femur, optimized cam design, convenient for high flexion, 3-degree ridge of the tibial tray medullary cavity stem Posteriorly inclined, anatomical tibial tray design increases the coverage of the tibial osteotomy surface, improves the tibial spacer post, and increases the femoral roll in high flexion. The tibial spacer is chamfered in front to reduce the impact with the patella during deep flexion. The trochlear groove of the femoral ankle is long, deep and lateral to optimize the trajectory of the femur, which can limit the general fit of the knee joint prosthesis.
Restrictive knee joint system: suitable for complex primary knee replacement and knee revision replacement, adapt to lateral instability and flexion gaps, J-curve, multi-radius design in line with human anatomy, used in conjunction with medulla needle to restore the knee joint Stability, post widening and heightening design, realizes the limitation of internal and external soil turning ±1.2 degrees, internal and external rotation ±2 degrees, symmetrical tibial tray design, 0 degree retroversion angle, better recovery of extension and flexion gap, different specifications and models of pads, meet clinical needs need. Total knee joint system: femoral ankle prosthesis anterior malleolus elevation angle of 5 degrees to avoid notch; inter-ankle fossa is anterior to reduce osteotomy, femoral ankle patella chute moves outward and deepens, patella is not easy to dislocate, tibial pad adopts cassette and The screw is double-locked, the contact surface of the tibial tray is highly polished, and the tibial tray wing handle ensures the stability of the cement curing process.

Customizing the knee joint requires you to provide detailed parameters, such as CT films, MRI pictures and other information, so that we can customize the most accurate and reasonable products for you.

Product Features

Material

titanium alloy, cobalt chromium molybdenum alloy, ultra-high molecular polyethylene, etc.

Components

femoral condyle, tibial plateau, poly insert, extension rod, etc.

Advantages

The current artificial knee replacement technology and the very advanced design of high knee flexion enable patients to have a high quality of life after surgery, and also provide a variety of revision and tumor knee prosthesis for complex knee surgery. Better product design and a variety of models have further improved the surgical effect. Total knee replacement is very mature in clinical application. Offers multiple solutions for patients and physicians.

Application

unicondylar replacement, total knee replacement, rheumatoid arthritis and other clinical scenarios that need to be replaced.

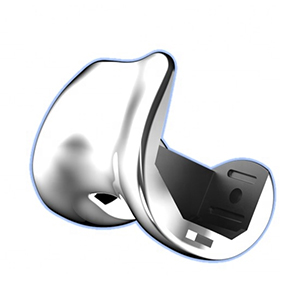

Femoral Condyle

Product parameters

Product name Product NO. Size ML AP
Femoral CondyleFemoral Condyle B520101-B520102 2L-4L(Interval 2L) 55-58(Interval 3) 47-50(Interval 3)
B520103-B520104 6L-8L(Interval 2L) 62-66(Interval 4) 55-59(Interval 4)
B520105-B520107 10L-14L (Interval 2L) 70-76(Interval 3) 62-70(Interval 4)
B520108-B520109 2R-4R (Interval 2R) 55-58(Interval 3) 47-50(Interval 3)
B520110-B520111 6R-8R(Interval 2R) 62-66(Interval 4) 55-59(Interval 4)
B520112-B520114 10R-14R (Interval 2R) 70-76(Interval 3) 62-70(Interval 4)

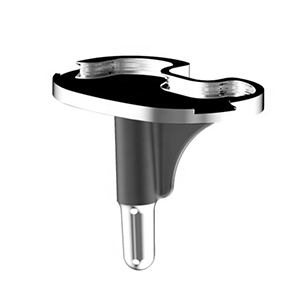

Product name Product NO. Size ML AP
Tibial Plateau(HFS)Tibial Plataeu(HFS) B530101-B530103 2L-6L(Interval 2L) 60-68 (Interval 4) 42-48(Interval 4)
B530104-B530106 8L-12L(Interval 2L) 71-77 (Interval 3) 50-54(Interval 2)
B530107-B530109 2R-6R (Interval 2R) 60-68 (Interval 4) 42-48(Interval 3)
B530110-B530112 8R-12R (Interval 2R) 71-77(Interval 3) 50-54(Interval 2)

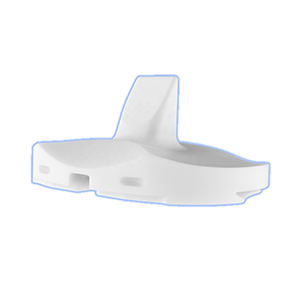

Product name Product NO. Size Thickness
Poly Insert(HFS)Femoral Condyle B540101-B540104 2-4 9-15(Interval 2)
B540201-B540204 6-8 9-15(Interval 2)
B540301-B540304 10-12 9-15(Interval 2)

Why Choose Us

1、Our company cooperates with a number Lorem ipsum, dolor sit amet consectetur.

2、Provide you with a price comparison of your purchased products.

3、Provide you with factory inspection services in China.

4、Provide you with clinical advice from a professional orthopedic surgeon.

certificate

Services

Customized Services

We can provide you with customized services, whether it is orthopedic plates, intramedullary nails, external fixation brackets, orthopedic instruments, etc. You can provide us with your samples, and we will customize the production for you according to your needs. Of course, you can also mark the laser LOGO you need on your products and instruments. In this regard, we have a first-class team of engineers, advanced processing centers and supporting facilities, which can quickly and accurately customize the products you need.

Packaging & Shipping

Our products are packaged in foam and carton to ensure the integrity of your product when you receive it. If there is any damage to the product you received, you can contact us as soon as possible, and we will reissue it to you as soon as possible!

Our company cooperates with a number of well-known international special lines to ensure the safe and efficient delivery of goods to you. Of course, if you have your own special line logistics, we will give priority to choose!

Technical Support

As long as the product is purchased from our company, you will get the installation guidance of our company's professional technicians at any time. If you need it, we will give you the operation process guidance of the product in the form of video.

Once you become our customer, all products sold by our company have a 2-year warranty. If there is a problem with the product during this period, you only need to provide relevant pictures and supporting materials. The product you purchased doesn’t need to be returned, and the payment will be refunded directly to you.Of course, you can also choose to deduct it from your next order.

  • artificial knee system
  • femoral condyle
  • poly insert

  • Previous:
  • Next:

  • Properties Implant Materials & Artificial Organs
    Type Implantation Equipments
    Brand Name CAH
    Place of Origin: Jiangsu, China
    Instrument classification Class III
    Warranty 2 years
    After-sale Service Return and Replacement
    Material Titanium
    Certificate CE ISO13485 TUV
    OEM Accepted
    Size Multi Sizes
    SHIPPING DHLUPSFEDEXEMSTNT Air Cargo
    Delivery time Fast
    Package PE Film+Bubble Film
